PCMSCAN is a fully featured software application supporting OBD-II scanners and now supports the AEM Air Fuel Ratio Gauge Style AFR UEGO Controller.

PCMSCAN 2.4.10 (Nov 2008)

* Fix scaling for PID FORD.ENGINE.FFINF.
* Changed all instances of "EQ_RAT" to "LAMBDA" in SAE PID names.
* Updated PID scripts to use SAE.LAMBDA instead of SAE.EQ_RAT. * Give the bus 5 seconds to time out after a five baud init fails.
* Fixed connection problem when using J2534 devices with non-CAN vehicles.
* Added numerous performance optimizations to rendering and loading code.

PCMSCAN supports 1996 and newer passenger vehicles whether it be US, Asian, or European. Supported OBD-II protocols: SAE-J1850 (PWM and VPW), ISO-9141, ISO-14230 (KWP2000), and ISO-15765 (CAN).

Download the demo, then if you like it you can buy it and turn your demo into a fully-working version.

• PCMSCAN for Windows is about 12 megabytes in size. Once you download it, just double-click it to launch the installer.

• Note: You will not be able to connect to a vehicle without a license code. You will only be able to evaluate program functionality, scan and log the Engine RPM parameter and play back the sample log files. Click here to purchase PCMSCAN.

Visit the PCMSCAN user forum for discussion and information about PCMSCAN, product features, and new releases.


Virtual Dashboards

• Highly configurable realistic looking gauges.

• Gauges can be moved, resized, and laid out to resemble your own dashboard.

• Virtual dashboard layouts can be loaded and saved from pre-existing templates or your own custom creations.

• Gauges can be configured to report the minimum, maximum, and average values of the parameter being monitored.

• Highly configurable graphs allow simultaneous graphing of up to 8 parameters per graph.

• Tables can be placed on virtual dashboards and customized to report any parameters you want.

• Maps can be placed on virtual dashboards and customized to display a full 3D view of any desired parameters.

• You can set up an unlimited number of gauges, graphs, tables, and maps on your virtual dashboard.

Download the demo, then if you like it you can buy it and turn your demo into a fully-working version.

Data Logging

• Currently supports over 90 generic OBD-II parameters, including O2 sensors.

• Also supports all aux. input parameters available from the Innovate Motorsports LM-1 Wide Band O2 meter.

• You can record and playback log files in real time (1ms logging accuracy).

• You can save and load your log files for offline analysis.

• Playback speed can be adjusted to play faster or slower than real time.

• There are no restrictions on how much data you can log, it is only limited by how fast your OBD-II interface cable can send the data and by how much memory you have in your computer.

• English and Metric (SI) unit measurement systems supported.

• Customizable log file data export to .CSV file for easy viewing in other programs like Excel.

• Export with real-time stamps for easy correlation with external data logs.

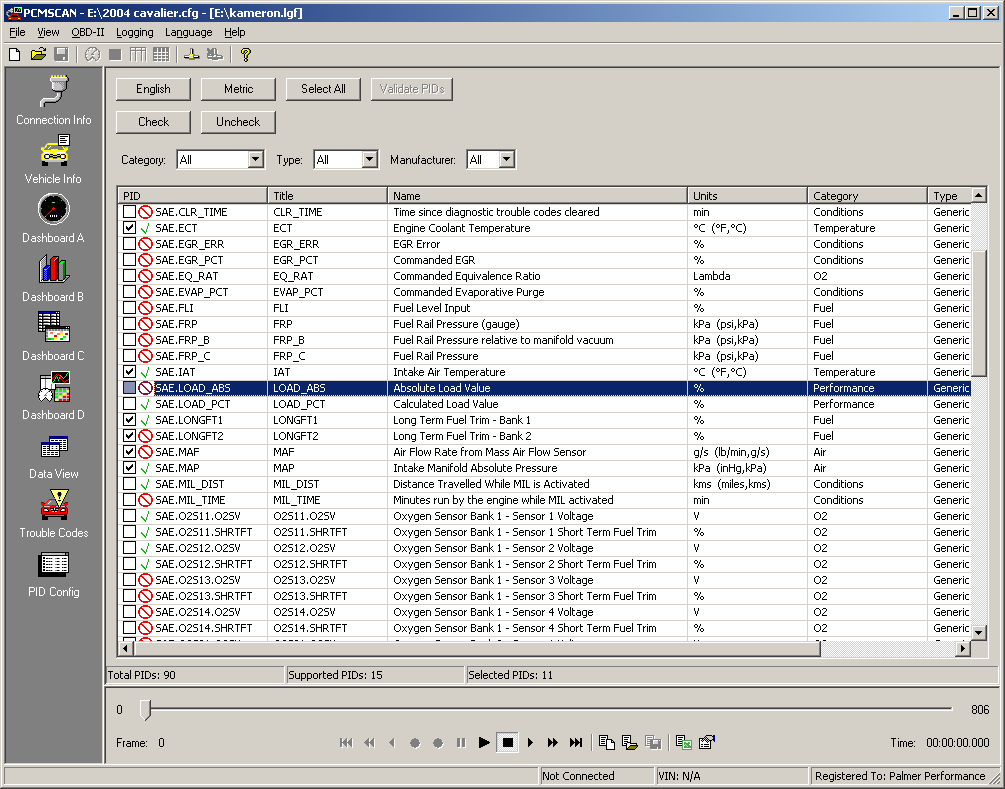

• PIDs can be assigned priorities to speed up the data capture rate.

Download the demo, then if you like it you can buy it and turn your demo into a fully-working version.

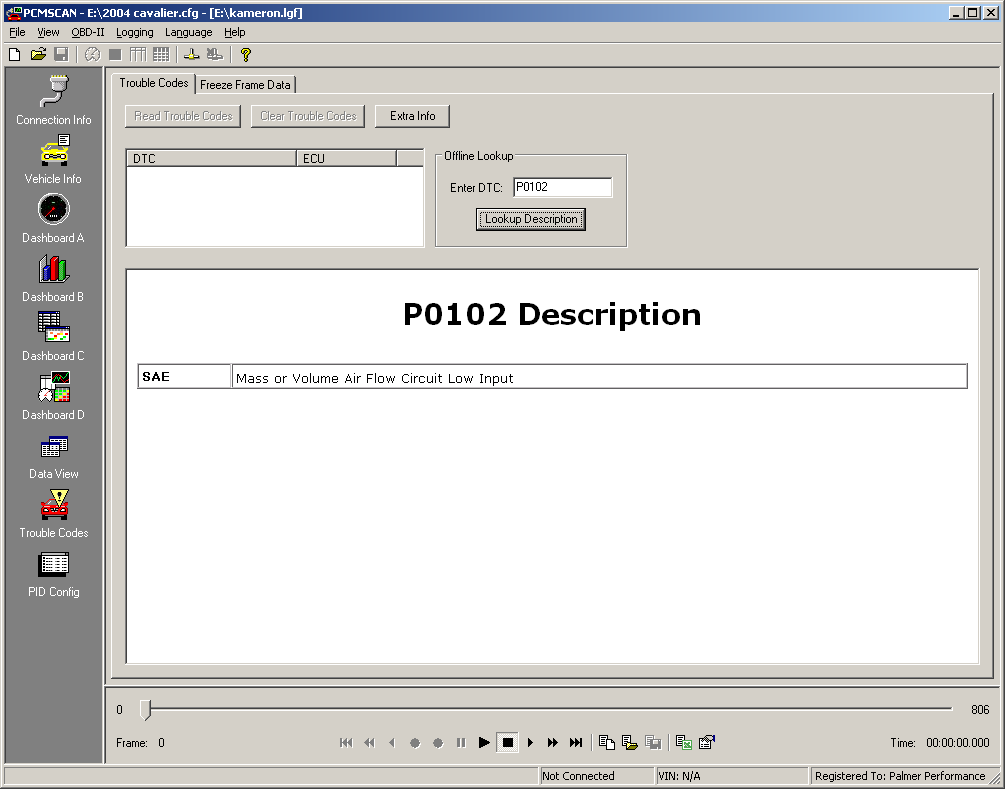

Trouble Codes

• Read stored and pending Diagnostic Trouble Codes.

• Clear the Check Engine or Service Engine Soon indicator light.

• Read and clear stored Freeze Frame data.

• Look up trouble code descriptions offline, without needing to connect to a vehicle first.

Download the demo, then if you like it you can buy it and turn your demo into a fully-working version.

Test Results

• Read the status of Continuously and Non-Continuously Monitored Tests.



Miscellaneous

• Full support for printing and print preview.

• All of the different views, including the virtual dashboards, support printing/print preview.

• For those who possess a knowledge of the OBD-II protocol, PCMSCAN provides an OBD-II Terminal where you can send custom commands to the vehicle.

Download the demo, then if you like it you can buy it and turn your demo into a fully-working version.

Interface Cables

PCMSCAN supports the following OBD-II interface adapters:


• OBD2 ALL-In-One Scan Tool

• Autotap AT1, AT2, AT3, AT123 (v2.x)

• VIA LDV100, LDV200, LDV300, LDV123

• Multiplex Engineering T16

• ElmScan family (v2.x)  including the new USB ElmScan 5

• Any SAE J2534 compliant OBD-II interface (such as the Mongoose or CarDAQ-plus)

• AEM Air Fuel Ratio Gauge Style AFR UEGO Controller.
